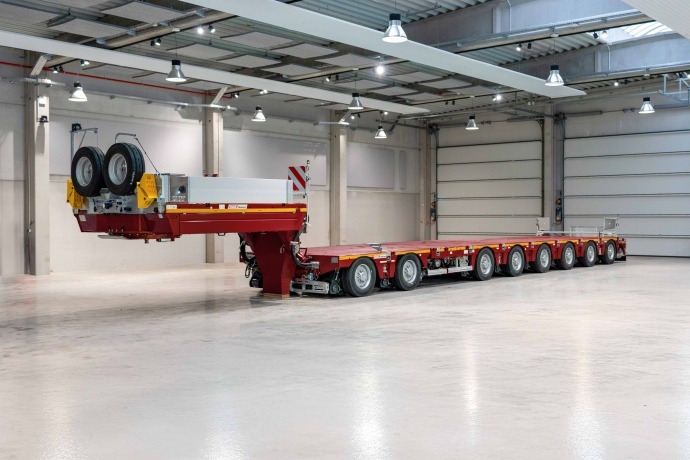

MAX TRAILER MAX810
Modular combination options on a new level
MAX Trailer is expanding its product range with the MAX810. This newly developed semi-trailer low loader with pendle-axles sets new standards in terms of stability, payload, and efficiency. With a technical payload of up to over 100 tons and a well-designed operating concept, the MAX810 is engineered for efficiency in daily use – all combined with MAX Trailer’s renowned attractive price-performance ratio.
Key specifications of the MAX810
- 17.5″ pendle-axles with a technical axle load of 13,740 kg (30 km/h)
- Loading platform with 6 or 7 axles
- 2 or 3 front axles
- Basic width: 2,750 mm
- Single or double telescopic extension
- Hydraulicly adjustable gooseneck
- Hydraulic ramps available as an option
MAX810 with up to 10 axle lines
The MAX810 is based on a modular overall concept: Depending on the application, the unit can be configured with in different variants, regarding the number of axles as well as the extension of the loading platform. Its loading platform is either directly coupled to the gooseneck or can be extended with 2- or 3-axle front-axle-system. The MAX810 is clearly aimed at applications where payload and loading height are crucial – from heavy machinery and plant engineering to recurring industrial transport.
Available at short notice
As an authorized dealer in the MAX Trailer distribution network, we are adding this new product to our portfolio and can deliver the new vehicle type in selected configurations at short notice.
You can find all current offers here.
Interested in the MAX Trailer MAX810?
Contact us! Our team will advise you and help you find the right configuration for your transport needs.
